Oписание продукта


Mini PCIe to 2 USB3.0 adapter is an ideal choice for any Mini PCIe expansible embedded or micro system needing larger volume and higher speed data transfer connectivity with USB devices. Real world applications such as: Connect to external hard disk drive, fast Solid State Drive(SSD), optical driver, high definition video camera etc.


System Requirement :

Hardware Requirement:

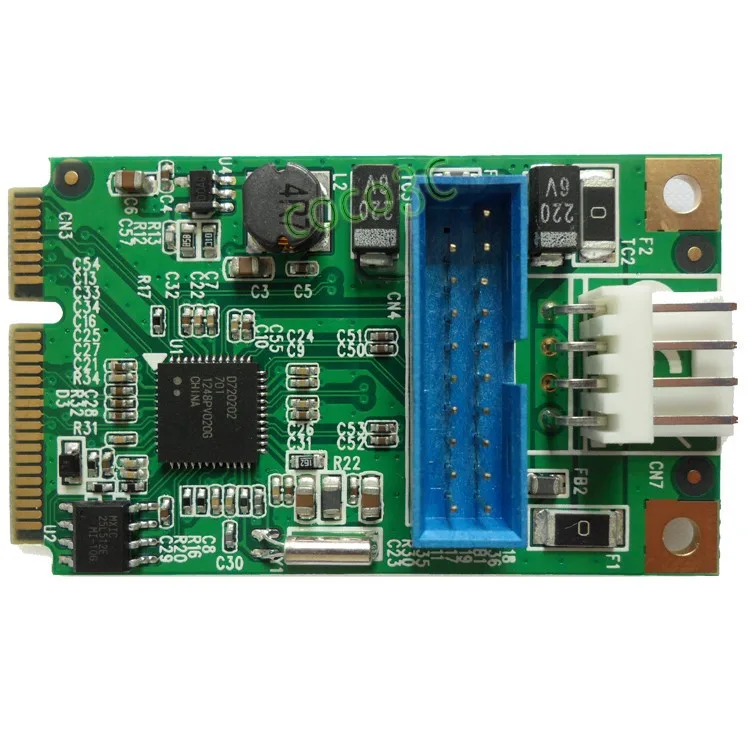

  • Based on Renesas D720202 chipset USB 3.0 Host Controller IC
  • Compliant with Intel\'s Extensible Host Controller Interface (xHCI) Specification Revision 1.0
  • Mini PCI-Express Interface:
    • 1-Lane Mini PCI-Express 2.0 Interface Supports Communication Speed of 2.5Gbps and 5.0Gbps
    • Compliant with PCI Express Base Specification 2.0
    • Supports PCI-bus Power management Interface Specification Revision 1.2
  • USB 3.0 Interface: (Backward Compatible)
  • Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
    • USB 3.0 Super-speed (5Gbps)
    • USB 2.0 High-speed (480Mbps)
    • Full-speed (12Mbps)
    • Low-speed (1.5Mbps)
  • Supports All USB Compliant Data Transfer Types:
    • Control
    • Bulk
    • Interrupt
    • Isochronous
  • Supports All USB Compliant Peripherals:
    • Keyboard
    • Mouse
    • Monitor
    • Joystick
  • Full Support of Real Time Dynamic Insertion and Removal of USB Devices
  • Internal FDD Power Connector for Supplying +5V Power to the USB Ports
  •
  • Dimensions: 30x50.95 mm
    • Microsoft Certified WHQL Drivers
    • Windows 7 32/64-bit
    • Vista 32/64-bit
    • Windows XP 32/64-bit
    • Server 2008 R2 64-bit
    • Motherboard with One Available Mini PCI-Express 1.0/2.0 Slot.
    • Mini PCI-Express 2.0 Slot is Highly Recommended for Fully Utilizing the Super Speed USB 3.0 (5Gbps) Bandwidth

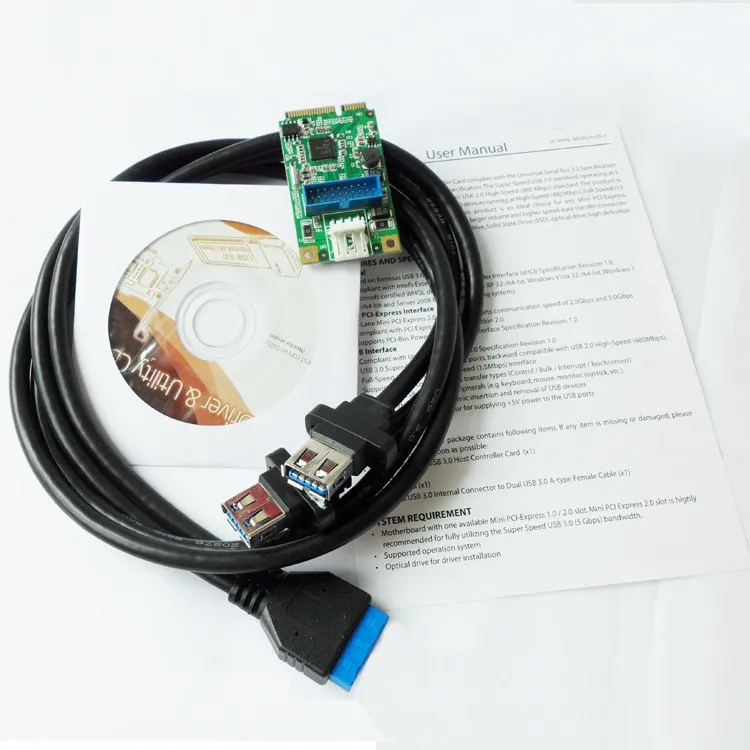

  • Mini PCI-Express USB 3.0 Card    x1

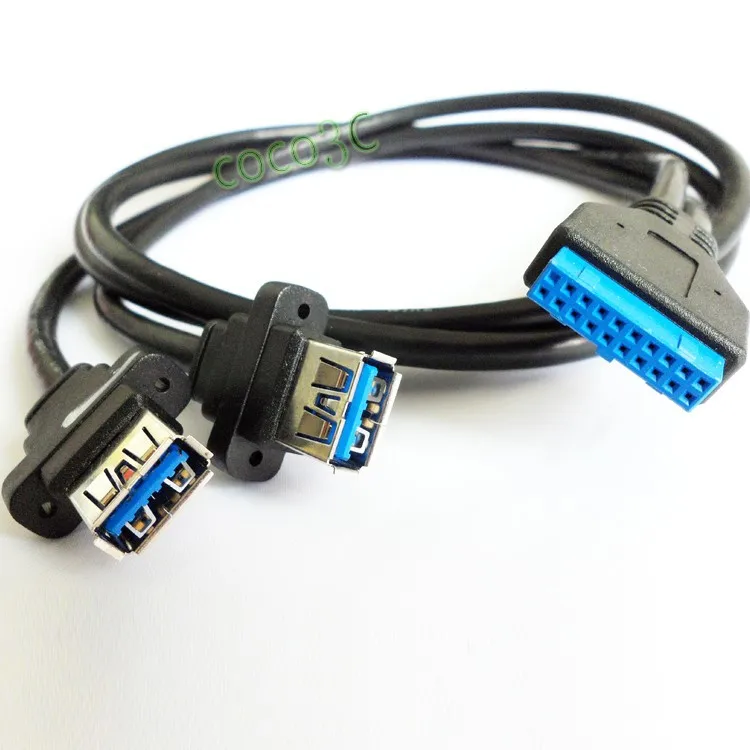

  • USB 3.0 19-pin Header Splitter Cable (28")      x1
  • User Manual  x1
  • Driver CD  x1
